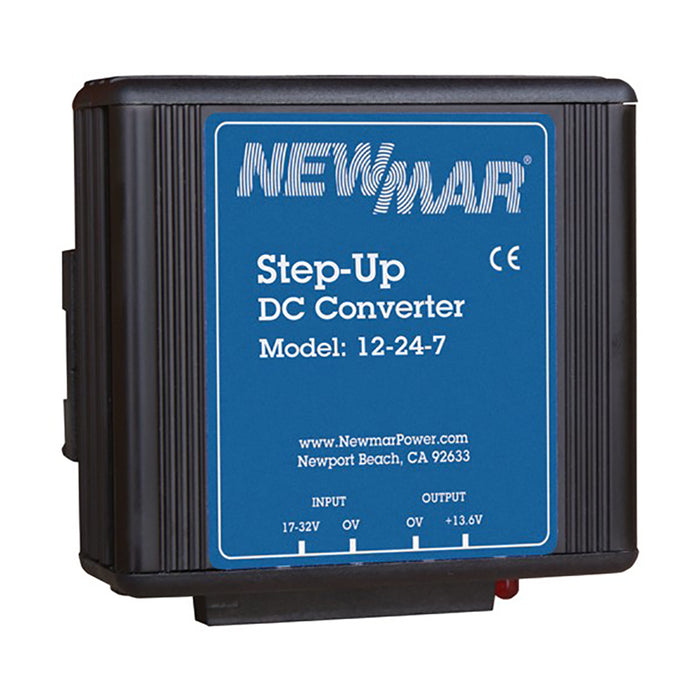

Furuno 12V-24V 7 Amp Converter f/DRS12AX X-Class Open Array - Newmar [NEW-12V-24V-7A]

by Furuno
Sold out
Original price $425.00 - Original price $425.00
Original price
$425.00
$425.00 - $425.00
Current price $425.00

12V-24V 7 Amp Converter for DRS12AX X-Class Open Array - Newmar

Newmar 12-24-7 Step Up Dc-Dc Converter 7amp Conitnuos

These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:

In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.

Standard, Non-Isolated Series

  • Intended for use on negative ground systems
  • 10 -15 VDC input range
  • 7 Amp output
  • Current limited, voltage spike suppression, automatic thermal shutdown and recovery

Specifications:

  • Input: 10 - 15V DC
  • Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
  • Ripple: <100mV P-P
  • Regulation: +/- 5% Line/Load
  • Duty Cycle:
  • Intermittent: 2 minutes, 20% duty
  • Continuous: 24 hours, 100% duty
  • Operating Temp: -25º - 30º C, derate linearly from 30 to 0% @ 80º C

Mechanical

  • Efficiency: 93% - Typical.
  • Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
  • Front panel terminal block
  • Output indicator: Green LED
