Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack [311399]

by Ancor
Sold out
Original price $50.17
Original price $50.17 - Original price $50.17
Original price $50.17
Current price $34.95
$34.95 - $34.95
Current price $34.95

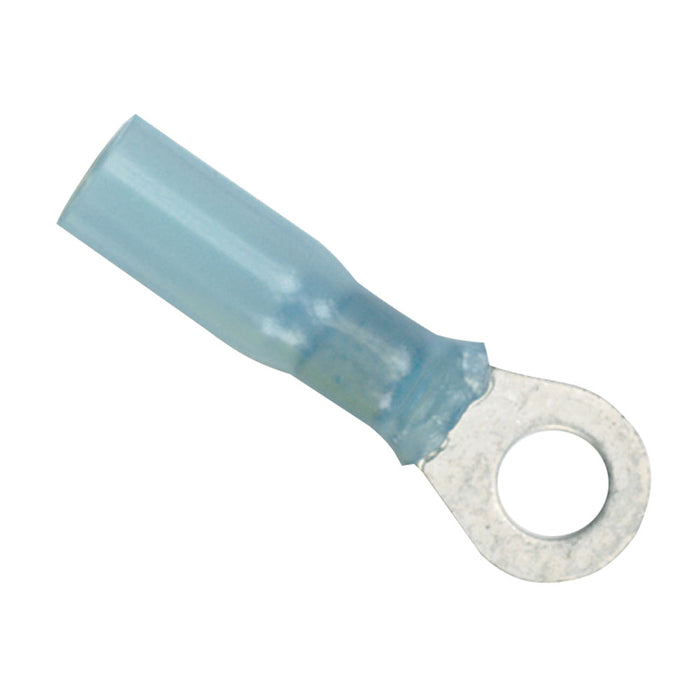

16-14 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Gauge Size: 16-14
Screw Size: #10
Quantity: 100

Product Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257° F/125° C
  • Operating temperature range 40° C to 110° C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Type: Ring Terminals
  • Post Size: #10
  • Package Qty: 100
  • Heat Shrink: Yes
  • Gauge: 16-14 AWG
  • Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs
  • UPC: 091887313123

Quick Guide (pdf)
Brochure (pdf)
