Barton Size 2 35mm Plain Bearing Pulley Block Double Swivel Becket [N02231]

Barton Size 2 35mm Plain Bearing Pulley Block Double Swivel Becket [N02231]

by Barton Marine
Sold out
$50.16
$50.16 - $50.16
$50.16
$42.95
$42.95 - $42.95
$42.95

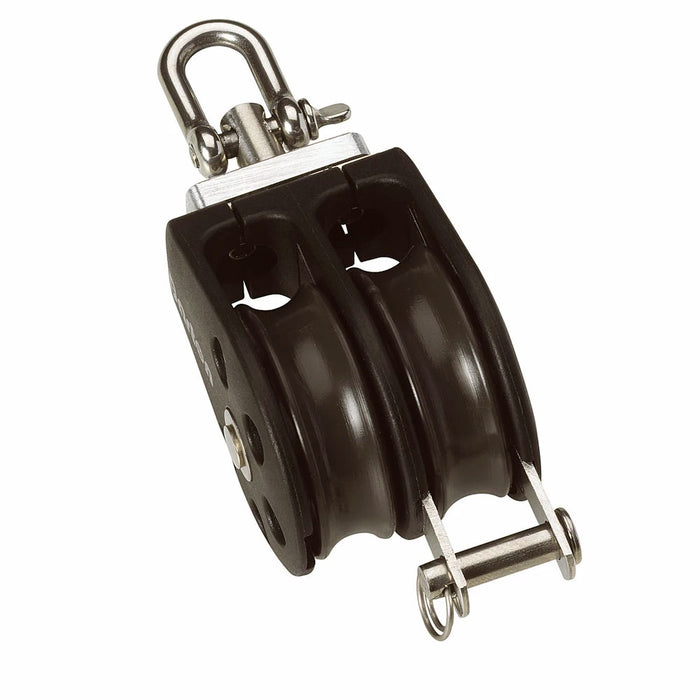

Size 2 35mm Plain Bearing Pulley Block Double Swivel & Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

  • Weight: 99g
  • Dimensions: 100 × 39 × 38 mm
  • Size: 2 (35MM)
  • Block Type: Fixed Eye + Becket
  • No. of Sheaves: Double
  • Bearing Type: Plain
  • Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
  • Max rope diameter: 8mm (5/16")
  • SWL: 370kg (815lbs)
  • Break load: 740kg (1630lbs)
  • Max rolling load (ball bearing blocks): 260kg (573lbs)

Quick Guide (pdf)
