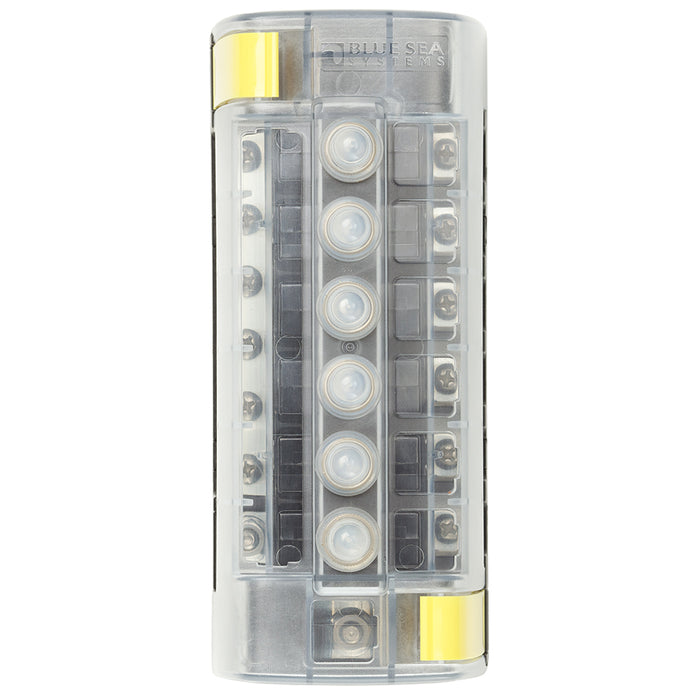

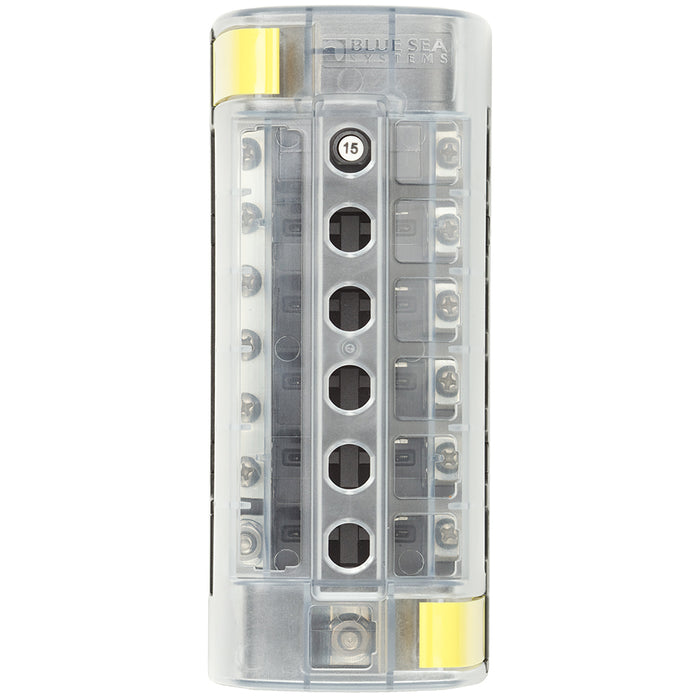

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus [5052]

Save $23.83 Save $23.83
Original price $77.78
Original price $77.78 - Original price $77.78
Original price $77.78
Current price $53.95
$53.95 - $53.95
Current price $53.95

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits:t6
Maximum Amperage:t100A (per block) 32A (per circuit)
Maximum Voltage:t32V DC
Mounting:t#8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source:tCommon SourceMinimum Operating Temperature:t-10° C
Maximum Operating Temperature:t60° C
Mounting Centers:t5.63"(143 mm)
Screw Terminal Type:t#8-32 Screws with Captive Star Lock Washer
Height:t6.69"(169.93 mm)
Weight:t0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 100/32a
  • Box Dimensions: 3"H x 5"W x 11"L WT: 0.9 lbs
  • UPC: 632085050528

Brochure (pdf)
