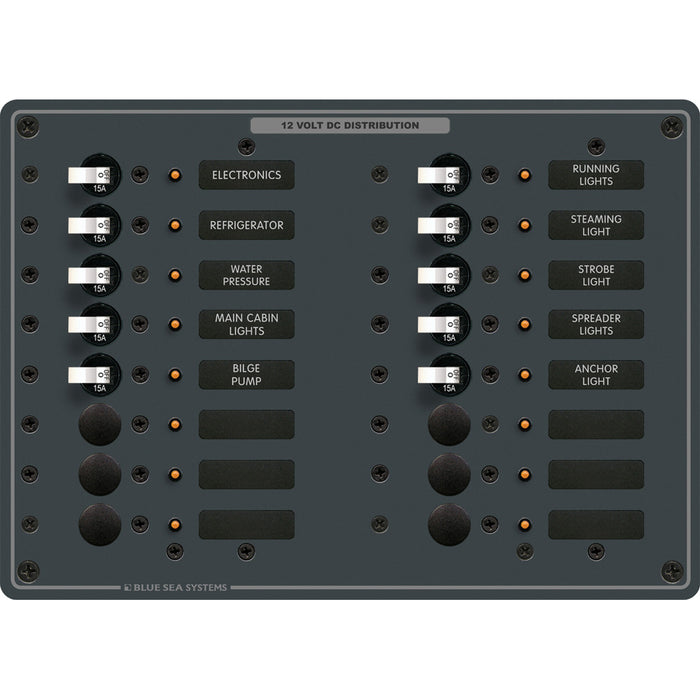

Blue Sea 8377 Panel DC 16 Position [8377]

Save $224.50 Save $224.50
Original price $722.45
Original price $722.45 - Original price $722.45
Original price $722.45
Current price $497.95
$497.95 - $497.95
Current price $497.95

16 Positions


  • (10) 15A Single Pole Circuit Breakers


  • White Switches

    Features:
    • Voltage 12/24v
    • Amperage 100A
    • All positive, negative and grounding buses installed, fully pre-wired
    • Panels with meters include toggle switch for mounting up to 3 battery banks
    • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Panel Labels
    • Over 500 individual labels available



    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Voltage: 12/24v
    • AC/DC: DC
    • Max Breaker Quantity: 16
    • Box Dimensions: 5"H x 9"W x 12"L WT: 3.9 lbs
    • UPC: 632085083779

    Quick Guide (pdf)
    Owner's Manual (pdf)
