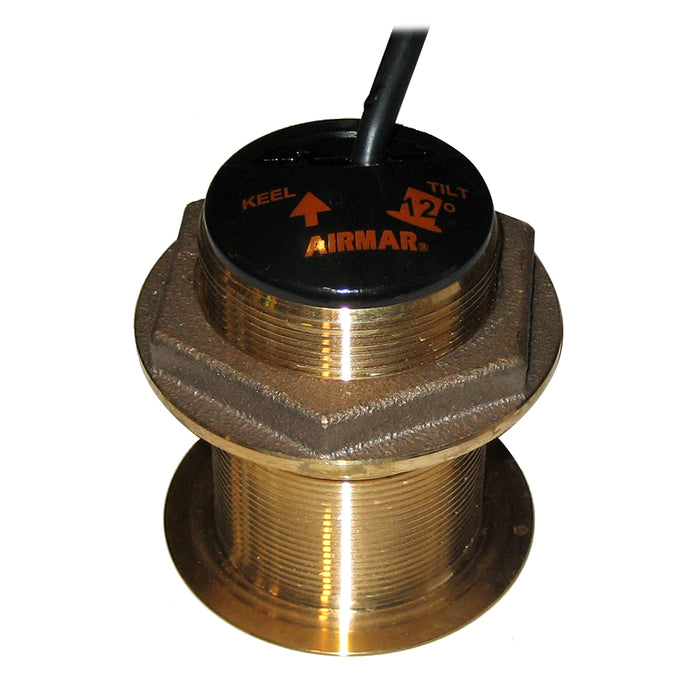

Furuno B60-12, 12 Degree Tilted Element Transducer (10-Pin) [525T-LTD/12]
B60 Tilted Element 12°
12° titled version is designed for 8° - 15° deadrise angles
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
- 50/200 kHz
- 600w RMS
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Box Dimensions: 6"H x 8"W x 9"L WT: 4.6 lbs
- UPC: 611679307941
Owner's Manual (pdf)
