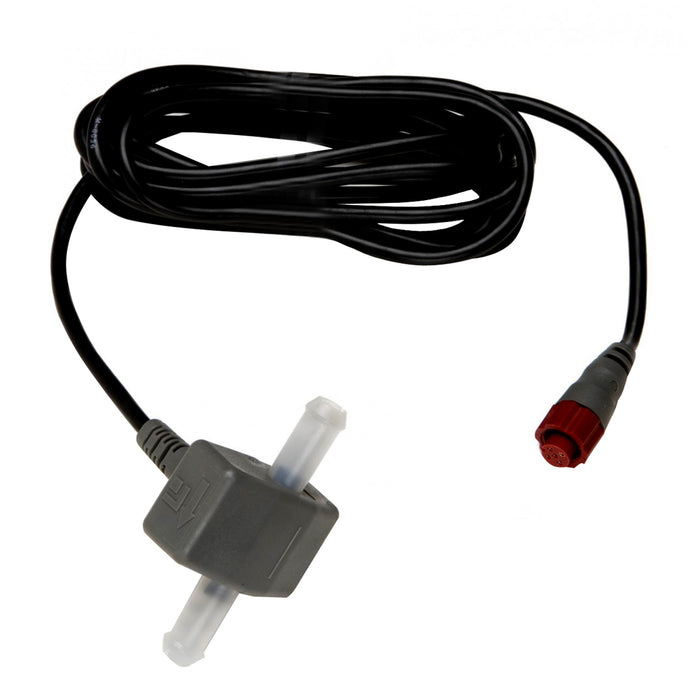

Lowrance Fuel Flow Sensor w/10' Cable & T-Connector [000-11517-001]

Sold out
Original price $219.00 - Original price $219.00
Original price
$219.00
$219.00 - $219.00
Current price $219.00

Save up to $4,000 w/Qualifying Purchases UNTIL 03/31/2024 VIEW

Fuel Flow Sensor with 10' cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

  • Fuel Flow
  • Tank Fuel Used
  • Trip Fuel Used
  • Seasonal Fuel Used


Cable Length:t10'
Fuel Line Diameter:t3/8" (9.5mm) Inside Diameter
Flow Rate Measured:tOptimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system:t0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location:tAbove the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package:tThe Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type:tGasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead:t22mm (7/8")
Multiple Fule Flow sensors possible:tYes
