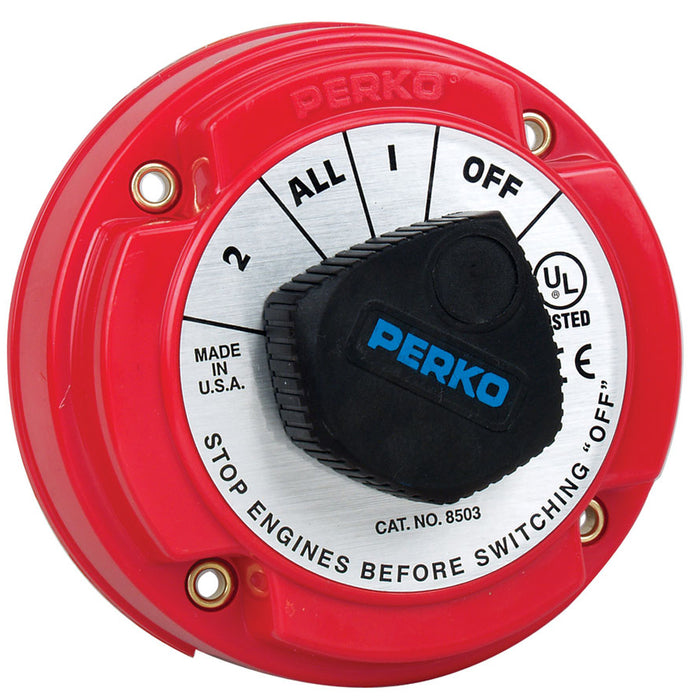

Perko 8503DP Medium Duty Battery Selector Switch w/Alternator Field Disconnect w/o Key Lock [8503DP]

Perko 8503DP Medium Duty Battery Selector Switch w/Alternator Field Disconnect w/o Key Lock [8503DP]

by Perko
Save $45.75 Save $45.75
$123.70
$123.70 - $123.70
$123.70
$77.95
$77.95 - $77.95
$77.95

Medium Duty Battery Selector Switches

  • Diameter: 5-1/4"
  • Depth: 2-5/8"
  • Polycarbonate Body with Brass Terminals
  • Ignition Protected
  • For use with 6 to 32 Volt Marine Electrical Systems
  • Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
  • Terminal Stud Size: 5/16"
  • When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine runnin

Specifications:

  • AFD: Yes
  • Lockable: No
  • Positions: 2
  • Continuous Amperage: 250a
  • Box Dimensions: 3"H x 6"W x 8"L WT: 0.85 lbs
  • UPC: 085226559969

Quick Guide (pdf)
