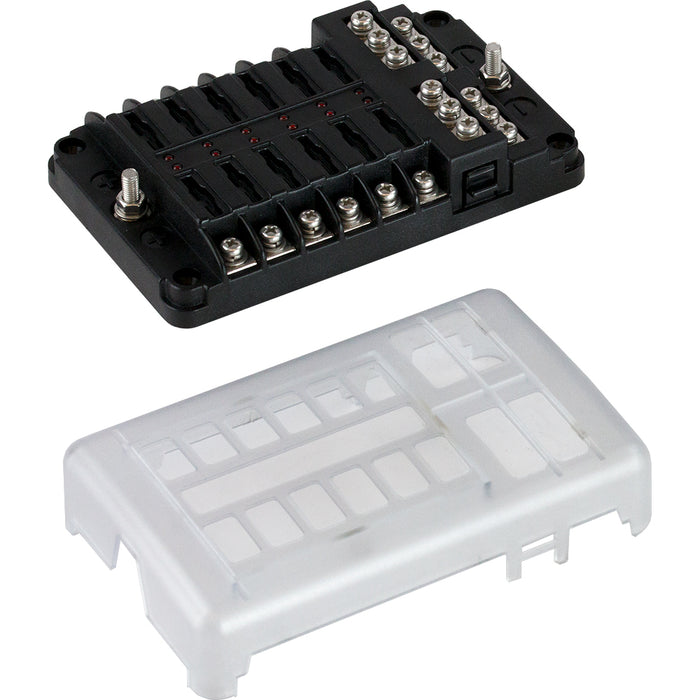

Sea-Dog Blade Style LED Indicator Fuse Block w/Negative Bus Bar - 12 Circuit [445188-1]

Sea-Dog Blade Style LED Indicator Fuse Block w/Negative Bus Bar - 12 Circuit [445188-1]

by Sea-Dog
Save $18.00 Save $18.00
$56.95
$56.95 - $56.95
$56.95
$38.95
$38.95 - $38.95
$38.95

Blade Style LED Indicator Fuse Block with Negative Bus Bar - 12 Circuit

Nickel Plated Copper/Stainless Steel/Injection Molded ABS.

Features:

  • Red LED lights indicate when fuse is blown or missing
  • Uses ATO/ATC & ATM fuses 1A-30A
  • Main line terminal rating is 100A 32VDC max, with M5 metric threaded studs
  • Single line terminal rating is 30A 32VDC max, with M4 metric threaded studs
  • Includes semi-transparent cover and 71 labels
  • Terminals are nickel plated copper with stainless steel screws
  • Installs with four #8 FH fasteners (not included)

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: ATO/ATC/ATM
  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 5"W x 8"L WT: 0.65 lbs
  • UPC: 035514446617
