SeaStar SS141XX The Rack Steering System

Great for many inflatables, bass boats, jet boats and small cruisers with limited space behind the dash.

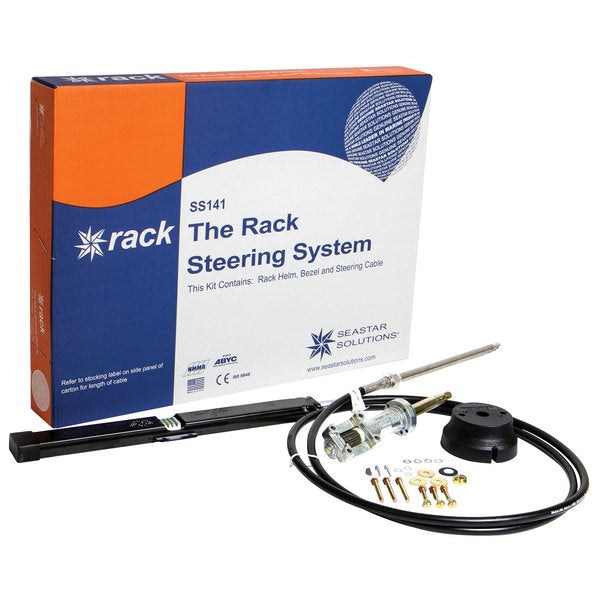

This rack-style steering system uses a machine cut pinion gear, which engages a pre-assembled rack and cable with armor-stranded core. Replaces most rack systems. Includes rack helm, 90° bezel, bezel kit, steering cable with stainless steel output end. Steering wheel and link-arm kits sold separately.

Key Features

• Fits many boats with limited space behind the dash
• Precise, easy 4 turns lock-to-lock
• Kits include: cable, helm, 90° bezel and hardware
• Standard 3/4” round tapered steering shaft
• Stainless steel cable output ends
• Meets A.B.Y.C. standards
• Meets N.M.M.A. certification requirements
• Includes rack helm, 90° bezel and steering cable
• Steering wheel and link-arm kits sold separately

Specifications

• Boat Type: Virtually all power assisted stern drive boats
• Steering Type: Rack and pinion
• Turns Lock-to-Lock: Four
• Dimensions: 6 1/2"D from dash front, 28 1/2"W
• Steering Wheel: Up to 16". Not included
• Steering Wheel Shaft: 3/4" tapered shaft
• Cable Type: SSC134 cable included, 8" min bend
