Shakespeare 5400-XT Galaxy 4' VHF Antenna [5400-XT]

Save $10.04 Save $10.04
Original price $199.99
Original price $199.99 - Original price $199.99
Original price $199.99
Current price $189.95
$189.95 - $189.95
Current price $189.95

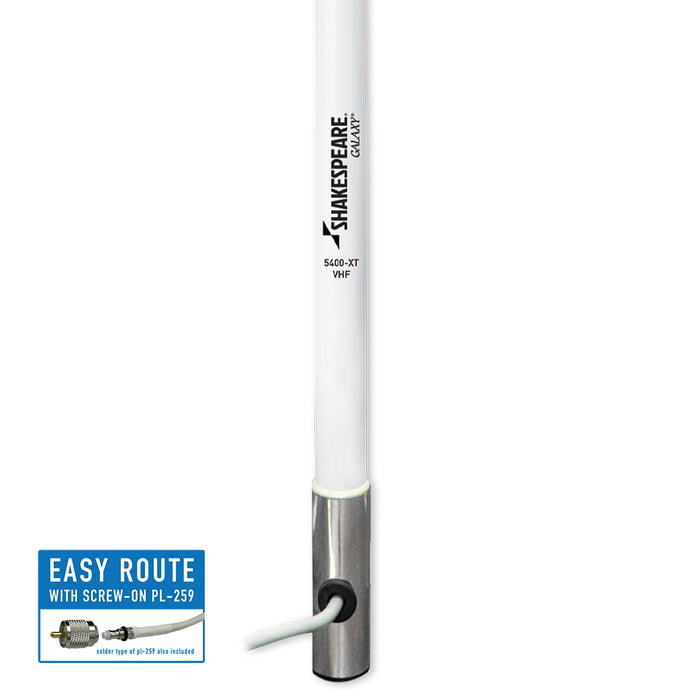

5400-XT Galaxy 4' VHF Antenna

Center-fed 1/2 wave coaxial sleeve

The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

  • Brass and copper elements for maximum range
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME Cables

Technical Specifications:

Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Gain: 3 dB
Max Input (Watts): 50 watts
Height (feet): 4

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 52"L WT: 2.5 lbs
  • UPC: 719441100605

Quick Guide (pdf)
